Alternative Replacements and Consumables suitable for CO2 and Fiber Laser

Reliable Replacement RF Power Tubes at OEM Quality Level

(e.g. for Trucell®, Trulaser®, TLF 700, TLF 1200, TLF 1500, TLF 2000, TLF 2700, TLF 3200, TLF 3600, TLF 4000, TLF 5000, TLF 6000, TLF 7000)

Due to the high cost of the so-called original tubes, we looked for alternatives for the laser tubes in Asia and Europe. We purchase our tubes only from quality manufacturers, e.g. TESLA and check them carefully to ensure a long and reliable operation in your Trumpf® CO2 laser. In addition to the proven tubes of TESLA we provide our own proven power tubes after thorough testing with our label (HFT-KW) and apply our favorable warranty terms to these tubes. Upon request, we will also install the tubes in your laser.
Tesla RS3021CJ HFT-KW RS3021CJ
RS3021CJ		 RS2048CJC
RS2048CJC		 Tube:

RS3021CJ

RS3021CJ-S
RS3021CJ-R

RS2048CJC
RS2048CJ-R

RT3021B, RT3021P
RT2048B, RT2048P		 Material number, as fas as known:

087627, 0120047, 0120730, 0142306, 0142307, 1290700, 1347276, 1544681, 1582540
as above, but made in past by Siemens
rebuilt electron tube

0932468, 1237228, 1237260, 1237398, 1296799, 1582457 (with graphite grid)
rebuilt electron tube

1800928, 1800961, 1800985, 1801047, 1803428
1811787, 1812660

Professional Installation of the Power Tubes Into Your Laser

RS2048CJ im 5kW Laser
RS2048CJ with 9V filament voltage		 Heizung messen
RS3021CJ with 5.7V filament voltage
Only a correctly adjusted filament voltage warranties a maximum lifetime of tube. The original data sheet from Siemens is used.

Repaired Driver Stages
Attention: Please offer us your defective driver stage!

Unfortunately, unexpectedly, the driver stages equipped with semiconductors can fail. They control the rf-power tube. We buy your defective driver stage, repair and test it, in order to be able to offer it from stock at reasonable cost.
ID-Numbers of driver stages: 1304812, 1313254, 1288251, 1258223, 1288252, 0102130, 1303885, 1288256.

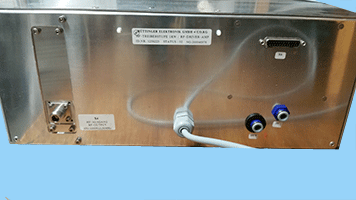

650W Driver Stage
1000W CLASS E driver stage, ID# 1258223		 Treiberstufe 650W CLASS E
Inside view 650/1000W CLASS E driver stage

List of curent inventory of repaired driver stages (subject prior sales) per 07.03.2024

Treiberleistung Watt Frequenz
(MHz)		 CLASS OEM ID-Nummer Lager-bestand Treiberleistung Watt Frequenz
(MHz)		 CLASS OEM ID-Nummer Lager-bestand
450W 13,56   1304812   1000W 13,56   1633973
450W 13,56   1422185   1000W 13,56 E 1746606
600W 13,56   B75-002   1000W 13,56    B76-0013
600W 13,56   0087597 v 1200W 13,56   0102130 v
600W 13,56   0102687   1200W 13,56   0102654
650W 13,56   954356 v 1200W 13,56   B76-0004
650W 13,56   990818   2000W 13,56   139823 v
650W 13,56   1286829 v 2000W 13,56   342740 v
650W 13,56   1288251   2000W 13,56   1286828
650W 13,56 E 1313254   2000W 13,56   1288256
650W 13,56 E 1392849   2000W 13,56 E 1303885 v
650W 13,56   1544591   2000W 13,56 E 1383930 v
650W 13,56   1544595   2000W 13,56   1597794 v
1000W 13,56   0131606 v 2000W 13,56   1633972
1000W 13,56   149214   2000W 13,56 E 1726678
1000W 13,56 E 1258223 v 2000W 13,56 E 1746609 v
1000W 13,56   1286827   1000W 27,12   920105
1000W 13,56   1288252   1000W 27,12   1293759 v
1000W 13,56 E 1368226   1000W 27,12   1323934
1000W 13,56   1597793   1200W 27,12 E 1391564

Beam & Rail Bellows, Disc Bellows
 Nozzles and Ceramics   Sacrificial Anode
Bälge
L2530, L3020, L3030, L3030(L20), L3050, L4030, L4050, L6030, L6050, L8030(L60)
   Düsen Keramik
Nozzle holder and nozzles at all sizes		   Opferanode
Protect your water connectors at the power tube by regular exchange of the sacrificial anode.
Dust Filters Vacuum pumps   Protection glasses
Filterplatte
Dust filter plates for Keller and Handte dust collection systems		   Vakuumpumpe
Vacuum pump, e.g. ID# 0149023, 0352561, 0946052, 0941993, 1363752, 1363753		   Schutzglas
For FIBER LASER

Overcurrent Cut Off Board
Schnellabschaltung
Repaired overcurrent cut-off module, e.g. ID# 1238987
Attention: Offer us your derfective module!

To Start Page

Trumpf®, Trumatic® and Trulaser® are registered trademarks of TRUMPF GmbH + Co. KG. HF-Technik Wenske GmbH is not associated Trumpf GmbH + Co. KG. The use of the Trumpf name, trademarks and part numbers at these webpages are for identification and compability purpose only. All parts advertised for sale at these webpages are made for and/or by HF-Technik Wenske GmbH.
